KBZ SUBMERSIBLE DRAINAGE PUMP

The body of motor and pump is made of rigid cast iron-lasting durability.

Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

Semi-open impeller made of high chrome alloy match with wear plate(ductile iron) achieves superior durability.

Effective motor cooling due to discharge channel cast as part of the motor housing. Space economically by a top outlet.

Discharge 50mm(2'')to 150mm(6'').motor 1.5kW(2HP).

Hermetically sealed motor equipped build-in thermal protection for the power below 15kW.

Civil engineering

Mines, quarries, coal ore& slurries

Sewage treatment plants

General pumping purposes

Catalogue Download

Series Product Specfications

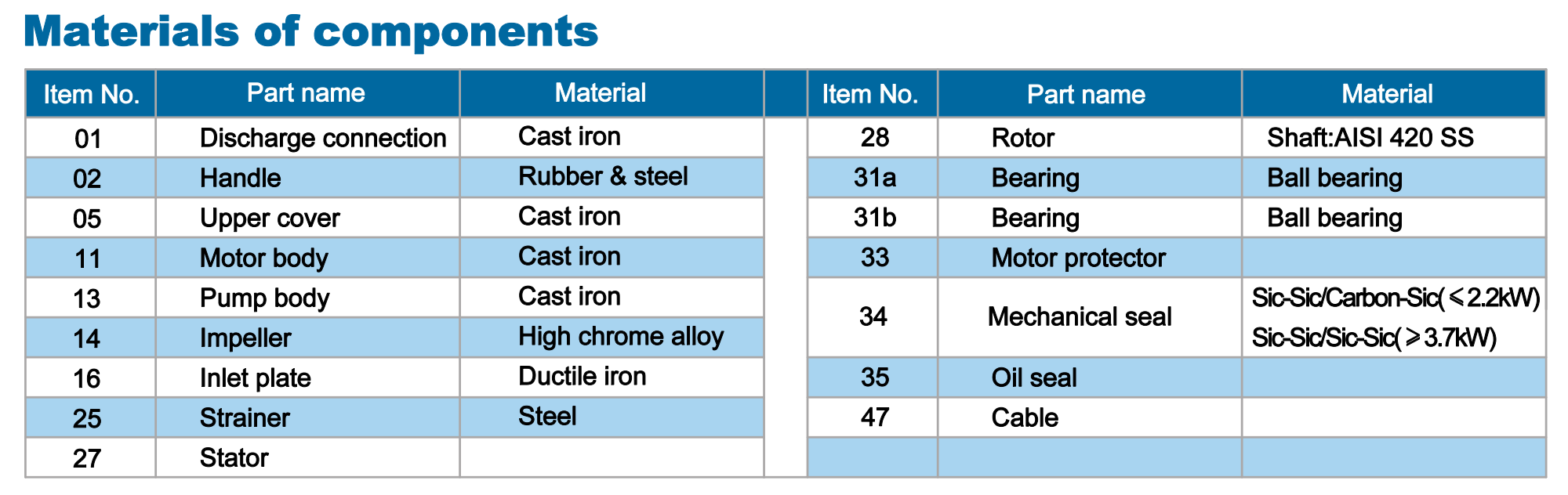

Material of Construction

Specification

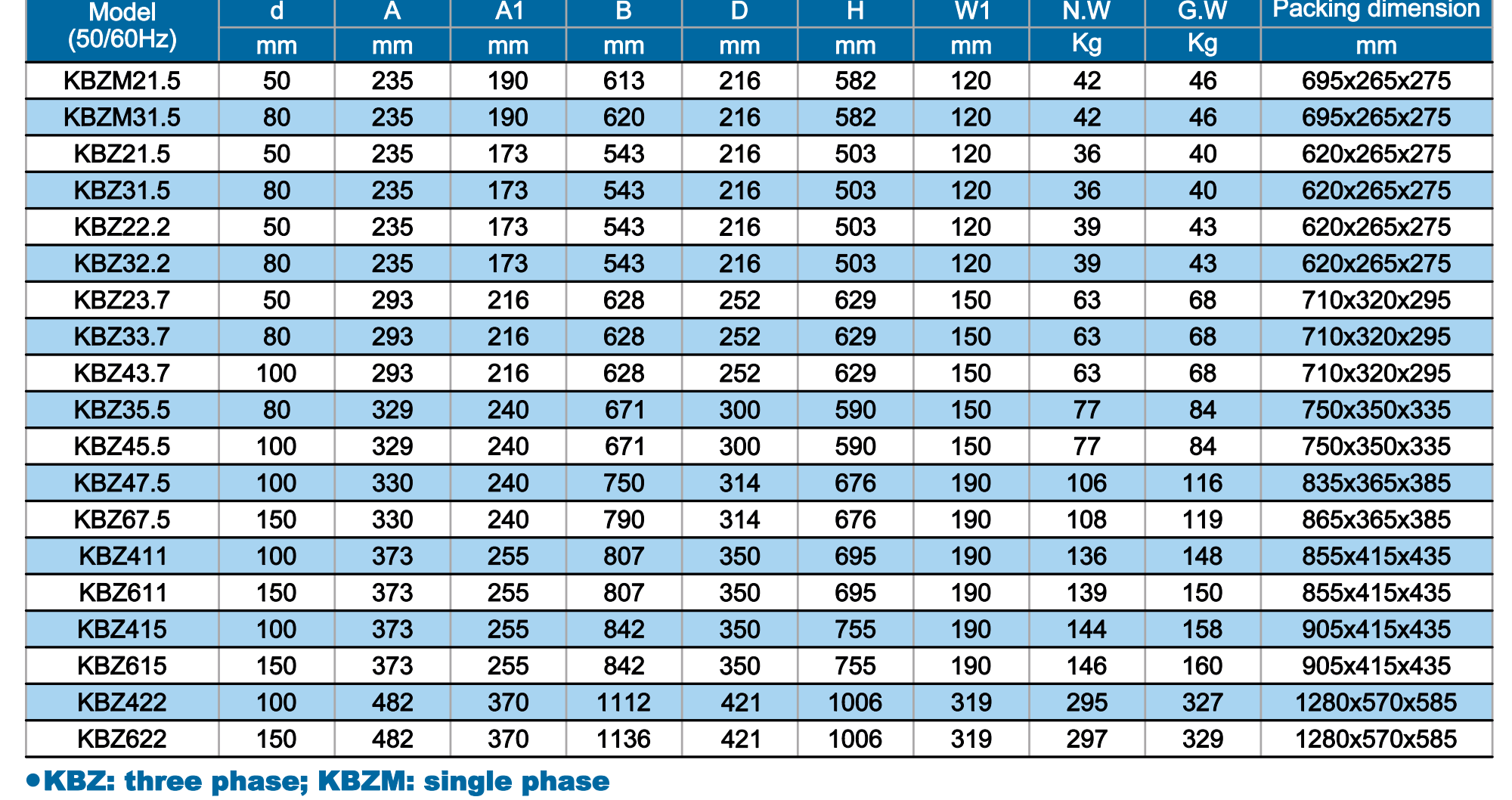

Packing Dimension

document dowload

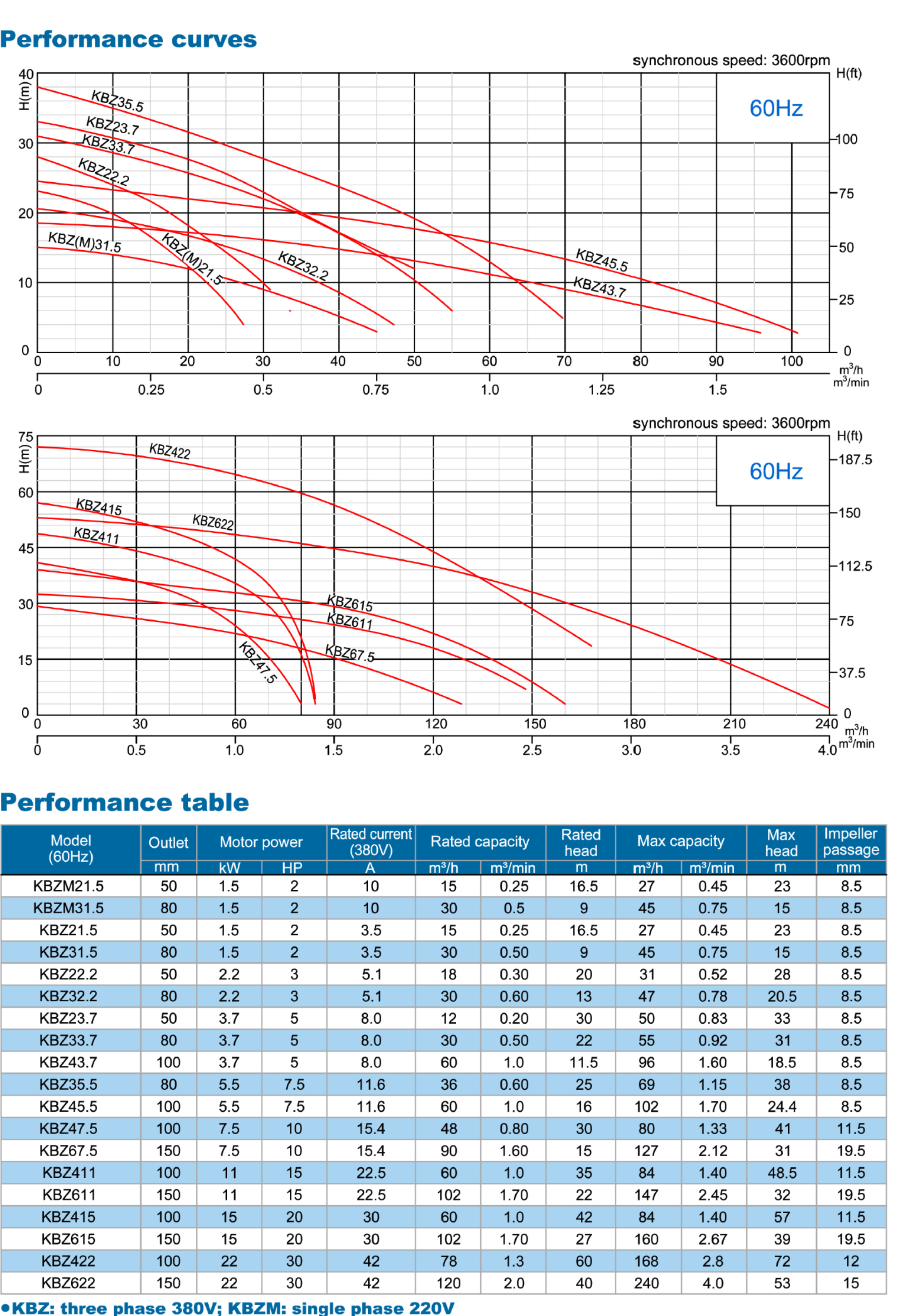

50Hz-KBZ

Details

60Hz-KBZ

Details

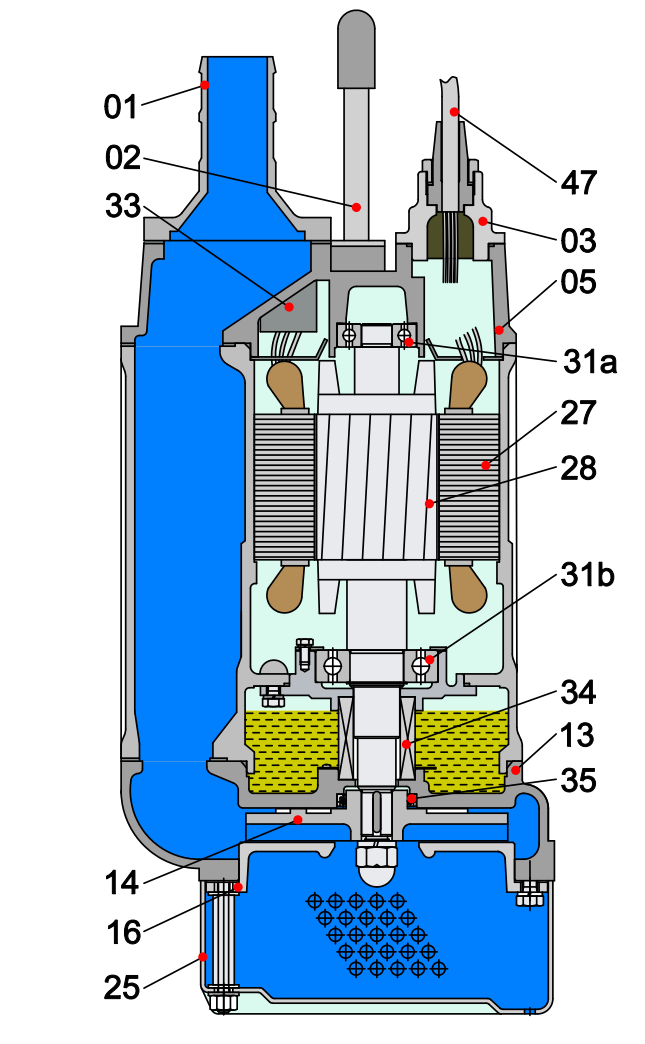

Explosive view-KBZ

Details

KBZ SUBMERSIBLE DRAINAGE PUMP

Gasket

KBZ SUBMERSIBLE DRAINAGE PUMP

Impeller

KBZ SUBMERSIBLE DRAINAGE PUMP

Inlet Plate

KBZ SUBMERSIBLE DRAINAGE PUMP

Pump Body
